Description

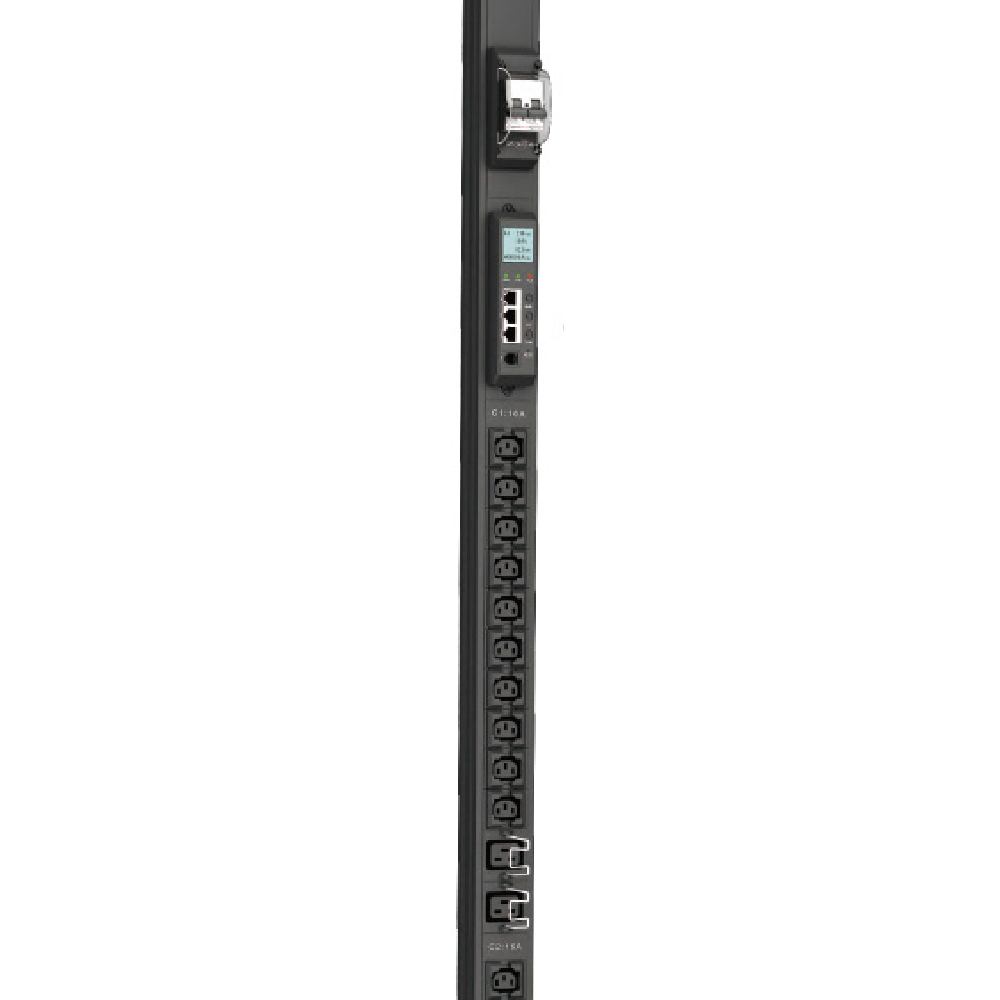

The K2 KONEKT Smart PDU is designed for next-generation data centers and critical IT infrastructures requiring intelligent power monitoring, remote management, and scalable architecture.

Built with a modular body and replaceable communication module, the Smart PDU offers real-time measurements (Voltage, Current, Power, kWh, Frequency, Power Factor) via SNMP, Modbus TCP, and HTTP/HTTPS protocols.

It supports up to 24 outlets and offers an intuitive web-based interface for remote access and alarm management. The LCD display ensures on-site status visibility, while RS485 or Ethernet options provide flexibility in deployment.

The Smart PDU is ideal for monitoring server power loads, identifying energy inefficiencies, and optimizing power consumption across racks and cabinets.

Key features include:

Intelligent PDU with remote access

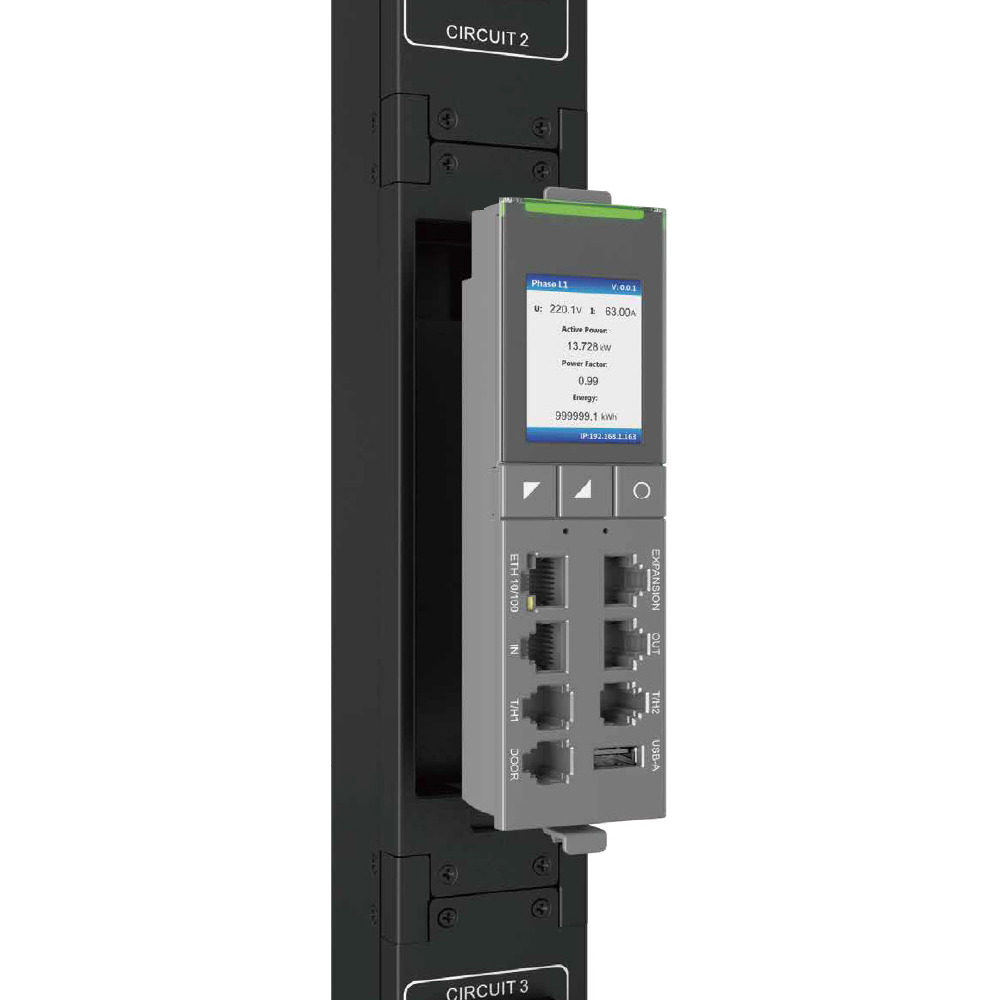

Modular design with replaceable communication card
Real-time monitoring: V, A, W, kWh, Hz, PF
SNMP, Modbus TCP, HTTP/HTTPS protocol support
LCD screen for visual status and alarms
Supports up to 24 output ports (optional socket types)
Web-based UI with alarm thresholds and history
Compatible with RS485 or Ethernet interface

General Features

* Monitoring: Voltage, Current, Power, Frequency, Energy (kWh), Power Factor

* Protocols: SNMP, Modbus TCP/IP, HTTP, HTTPS

* Communication Interfaces: RS485, Ethernet

* Web Access: Yes (browser-based configuration)

* Alarm Notification: Threshold settings + visual alerts

* Outlet Count: Up to 24

* Body: Modular + Replaceable communication card

* Display: LCD

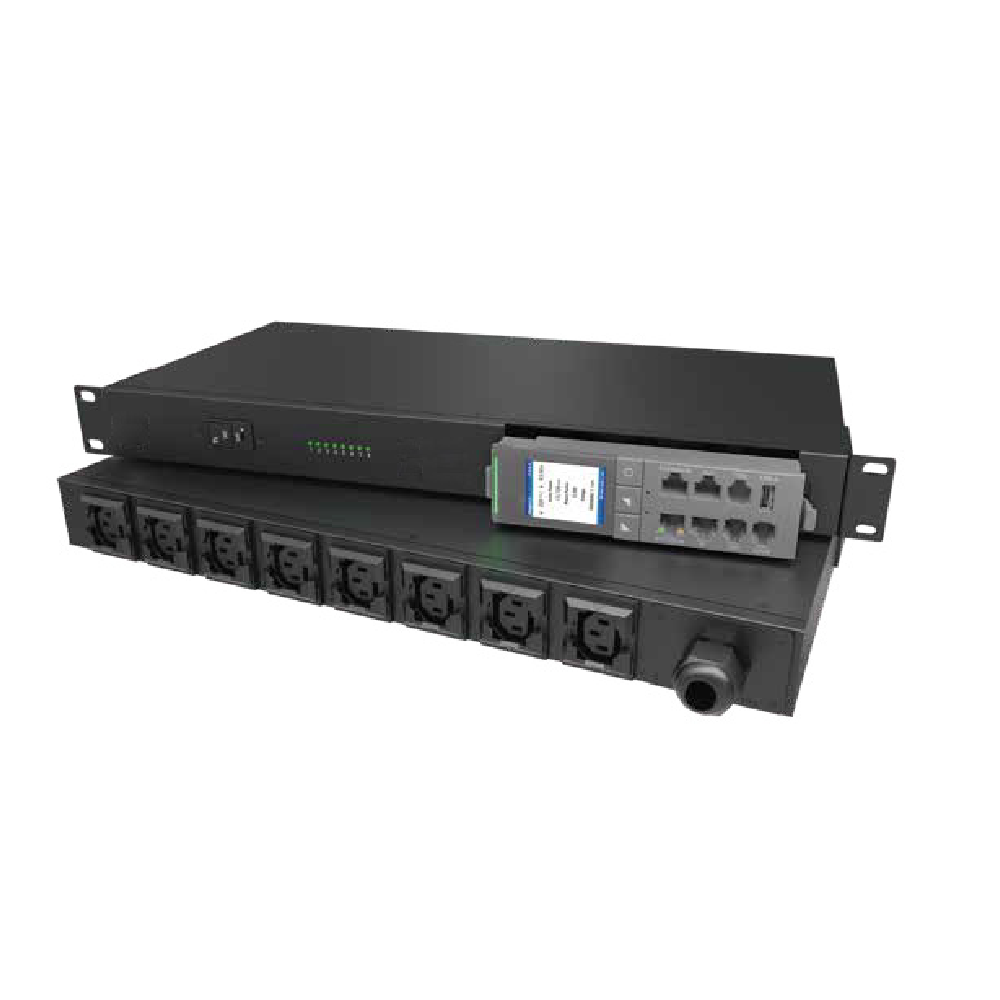

* Installation: Horizontal / Vertical Rack Mount

* Application: Data centers, telecom cabinets, critical IT rooms

Dimensions

* Voltage Range: 220–250V AC

* Current Range: Up to 32A

* Frequency: 50/60 Hz

* Output Sockets: IEC C13, IEC C19, or custom

* Connectivity: Ethernet (RJ45), RS485 (optional)

* Dimensions: Depends on model (1U / vertical)

* Product Code: Varies by configuration

* Color: Black (RAL9005)

Related Accessories & Options

* Communication Cards: SNMP / Modbus card modules

* Socket Types: IEC C13, IEC C19, Schuko, Universal

* Custom Configurations: Available upon request
