Description

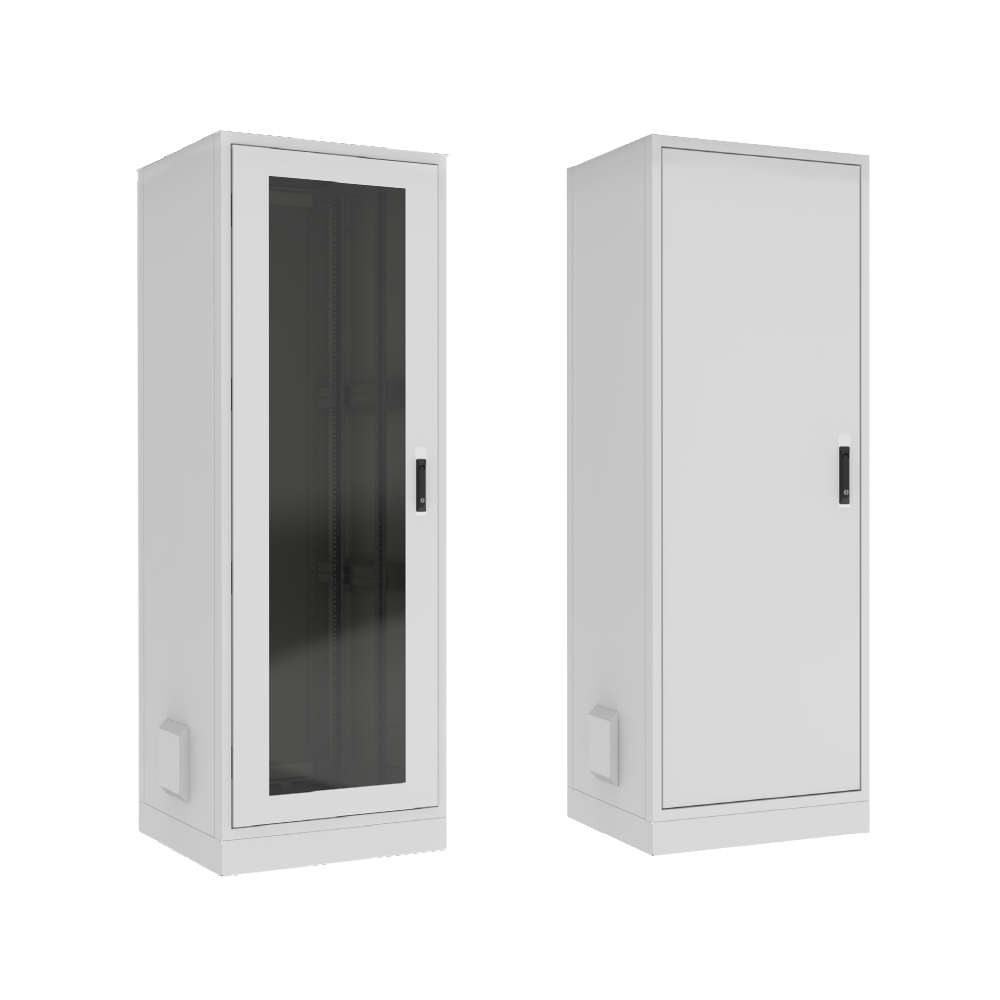

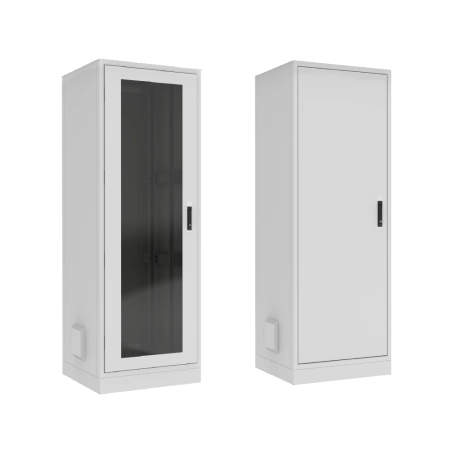

The K2 KONEKT ORCUS IP55 Series offers a highly secure, industrial-class 19” rack cabinet solution for applications that demand maximum protection from environmental hazards. With its IP55-rated sealed structure, it is resistant to dust, water, vandalism, and thermal stress.

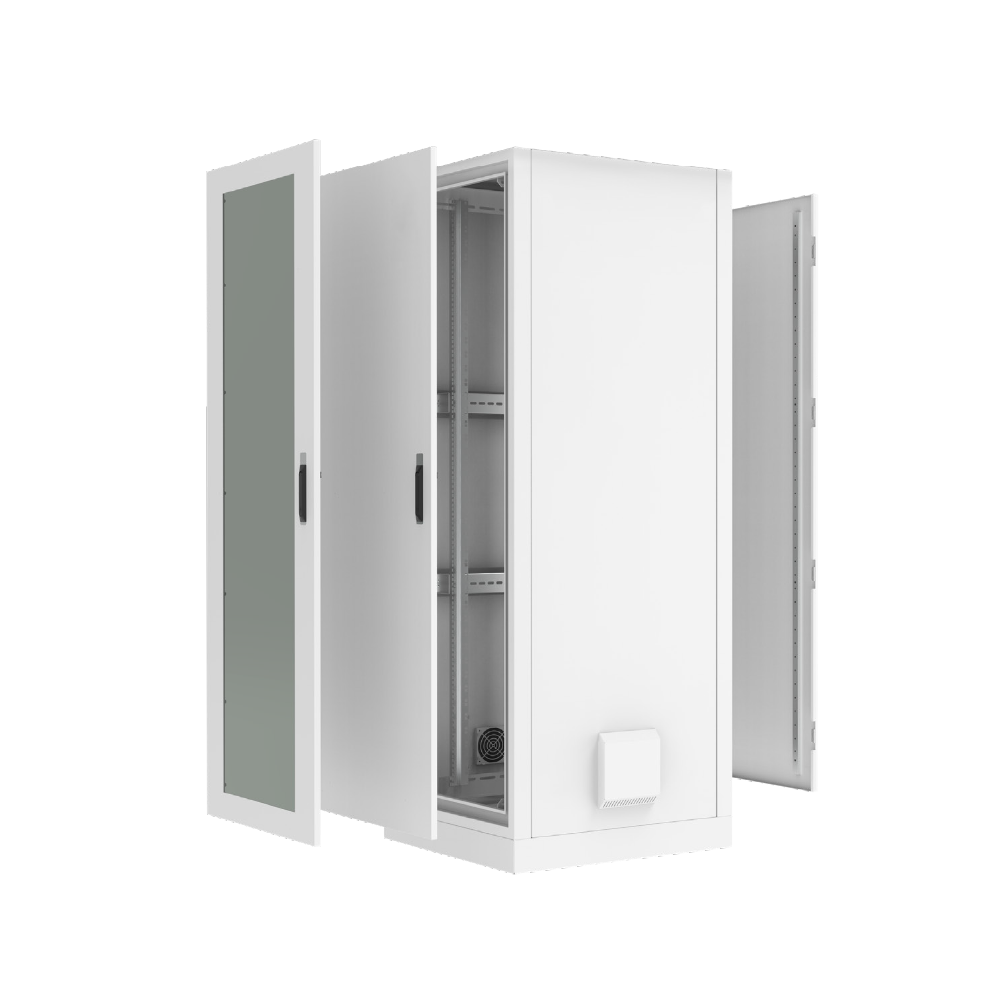

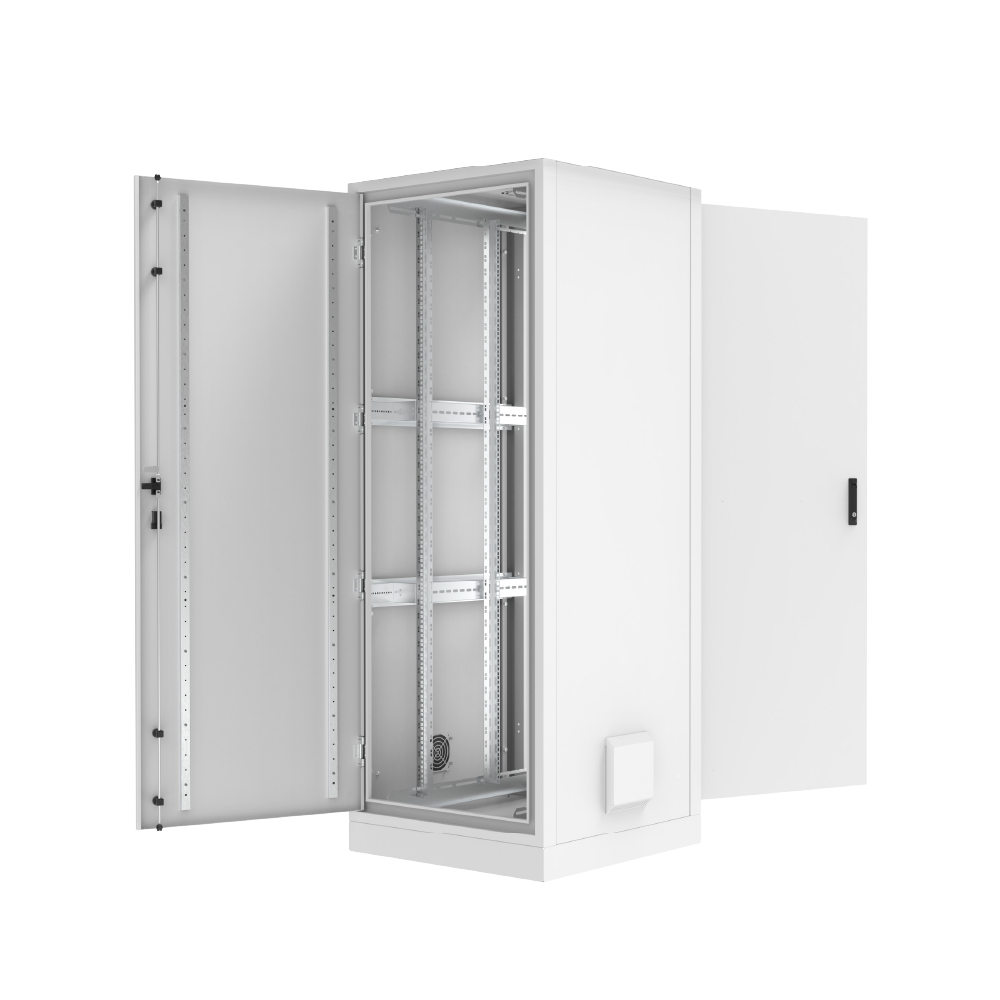

Built with a welded monoblock chassis and 1.5 mm galvanized steel panels, the cabinet supports a load capacity of up to 1500 kg. Its 3-point handle-locking system on the front and rear doors ensures high security. Side, rear, and top panels are removable for easy access.

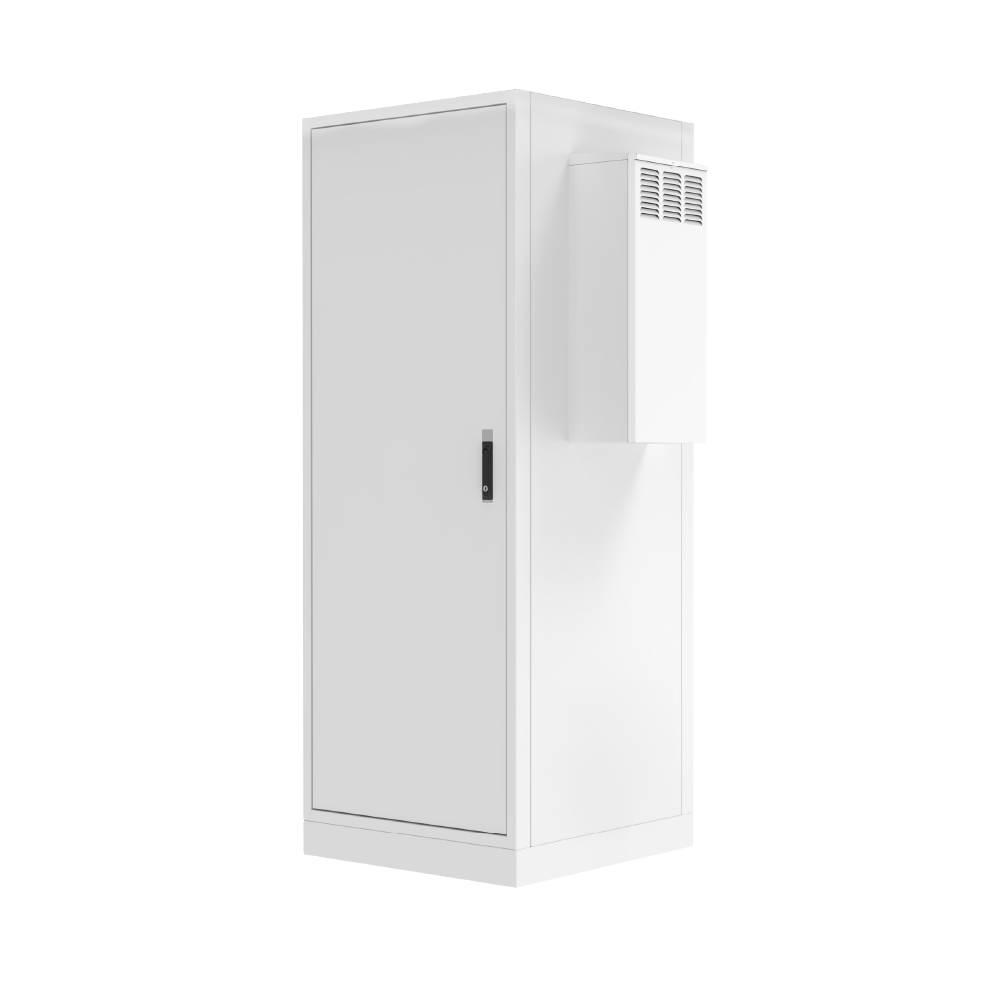

Optional glass doors, plinth base, and industrial air-conditioning modules provide flexibility for various usage needs.
Key features include:
- IP55-rated enclosure with water and dust sealing
- Welded monoblock body with reinforced carcass system
- Double-wall and insulated structure for thermal protection
- 3-point handle locking system on doors (110° opening)
- Cable entry with PG29 and PG21 glands on bottom panel

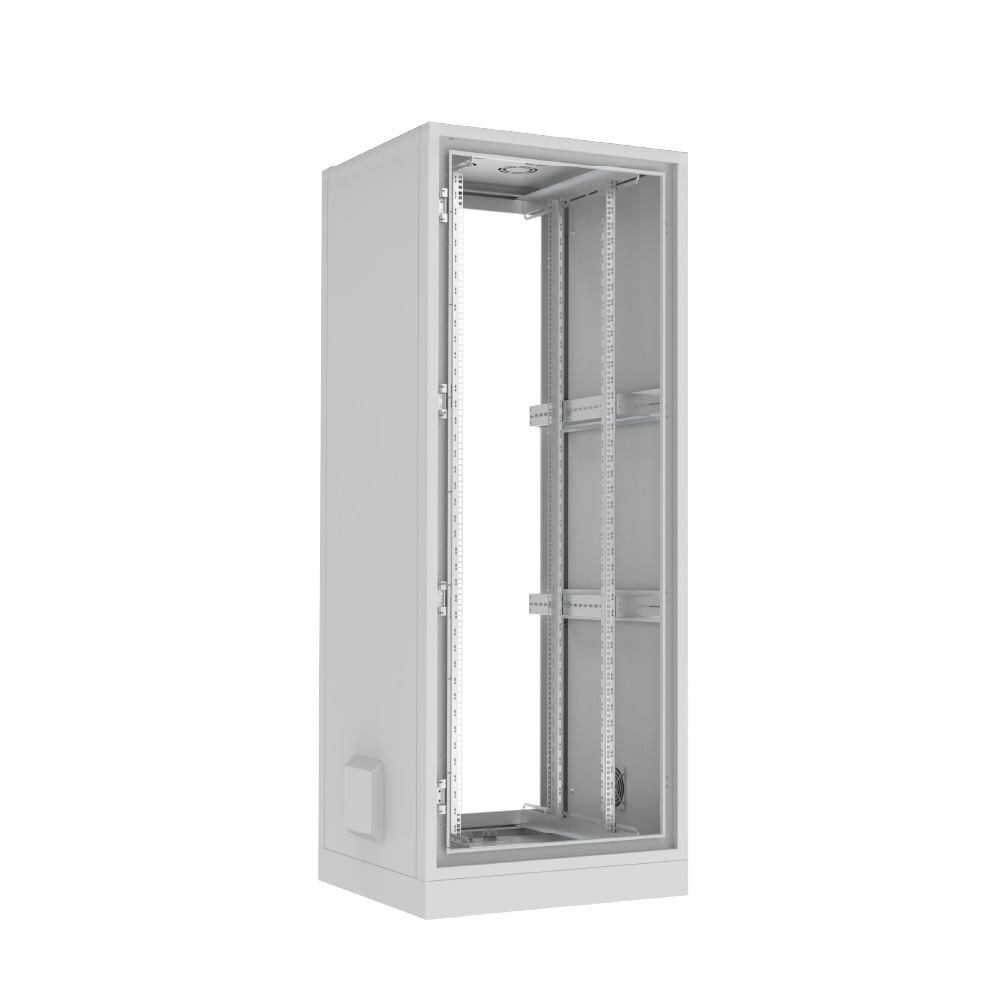

- Removable side, rear, and top panels for full access
- Plinth module available for base cable routing
- Fan module mountable top panel (airflow canopy)
- Available depths: 600 mm / 800 mm / 1000 mm
- Widths: 660 mm / 800 mm
- U sizes: 22U to 42U
- Color options: RAL7035 Light Grey and RAL9005 Black
- IP Protection: IP55 standard
With its heavy-duty design and environmental resistance, ORCUS IP55 Series is the ideal choice for mission-critical infrastructure and industrial deployment.
