Description

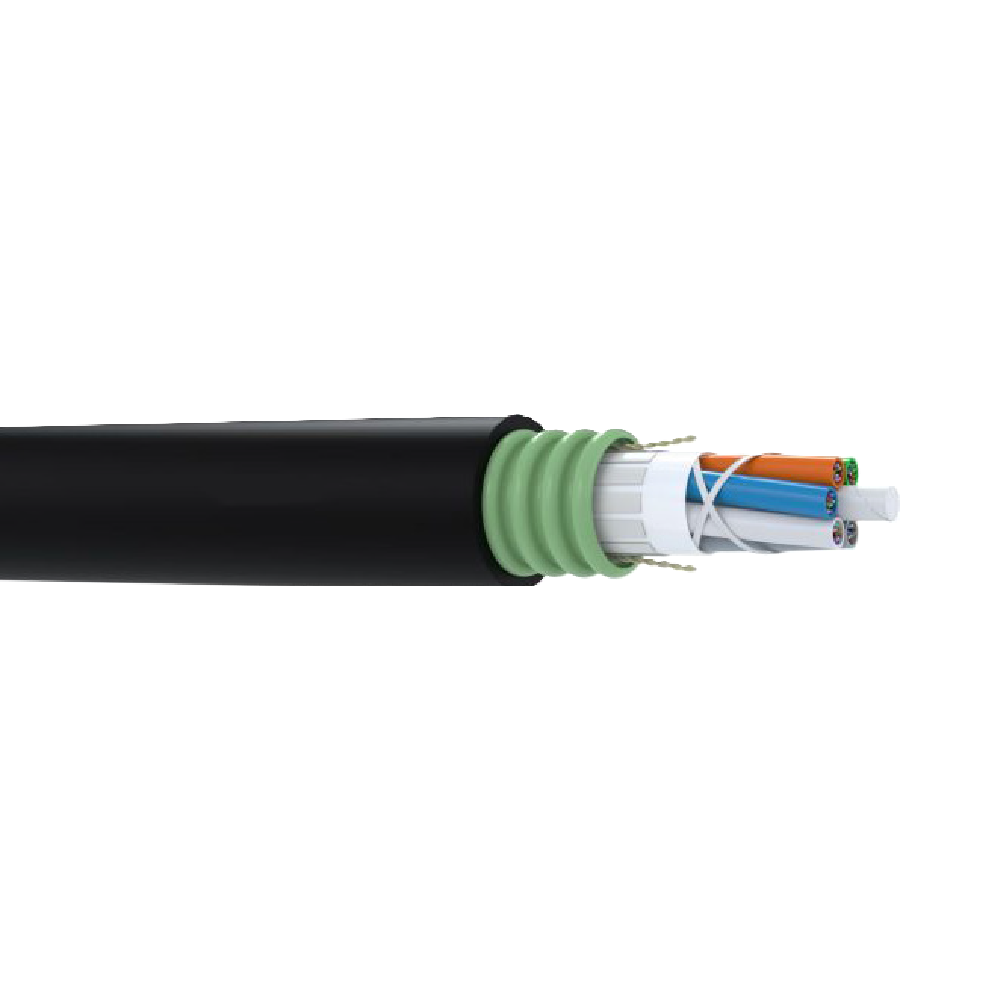

The K2 KONEKT HDPE Outdoor Armored Multi-Tube Fiber Optic Cable is engineered for rugged outdoor networks that demand durability, flexibility, and large fiber counts. It supports up to 144 optical fibers, grouped in color-coded PBT tubes filled with thixotropic gel for excellent water-blocking performance.
The tube assembly is SZ-stranded around a central reinforcement, with dry swelling materials and fiberglass protection added to eliminate moisture ingress. A corrugated steel armor shields against rodents and mechanical shocks, while the black PEHD outer sheath (RAL9005) ensures long-term UV resistance and CPR compliance.
Key features include:
- Up to 144 fibers in SZ-stranded multi-tube design
- Thixotropic gel for water-blocking in PBT tubes
- Glass yarn and dry swelling tape for sealing and protection
- Corrugated steel armor for mechanical and rodent resistance
- Black HDPE jacket (RAL9005), UV-resistant
- Certified to ISO/IEC 11801-1:2017, IEC 60794
- Fiber types: OS2 (G652D), OM3, OM4
- CPR Class: Fca certified (SGS 21WWYYxxxxxxM)
- Laser-printed marking: fiber type, count, compliance
General Features
* Fiber types: OS2 (G652D), OM3, OM4
* Central support member and PBT tubes with water-blocking gel
* SZ-stranded design with filler and fiberglass filaments
* Corrugated steel armor
* UV-resistant HDPE outer jacket (RAL9005)
* Water-blocking dry swelling tape
* CPR Certified: Fca
* Application: Long-distance outdoor, ducts, direct burial
* Color-coded fiber & tube identification per IEC 304
* Suitable for 1G to 400G transmission
Dimensions
* Fiber Counts & Tube Configuration:
* 24 FO: 2 tubes, Ø12.0 mm, 140 kg/km
* 48 FO: 4 tubes, Ø12.0 mm, 140 kg/km
* 72 FO: 6 tubes, Ø12.0 mm, 140 kg/km
* 96 FO: 8 tubes, Ø14.0 mm, 180 kg/km
* 144 FO: 12 tubes, Ø18.0 mm, 220 kg/km
* Mechanical Strength:
* Crush Resistance: 3000 N (long term), 4000 N (short term)
* Tensile Strength: 2000 N (long term), 3600 N (short term)
* Optical Performance (OS2):
* Attenuation @1310nm: ≤0.36 dB/km
* Attenuation @1550nm: ≤0.22 dB/km
* Macro-bend loss (30 mm radius): ≤0.05 dB
* PMD: ≤0.2 ps/km^0.5
* Color Codes (Fiber & Tube):
* Standard 12-color + black stripe for 13–24
* Compliant with IEC 304
* Packaging: 4000 m per drum
* Jacket: Black HDPE (RAL9005), UV resistant
* Certification: Fca / ISO / SGS 21WWYYxxxxxxM
